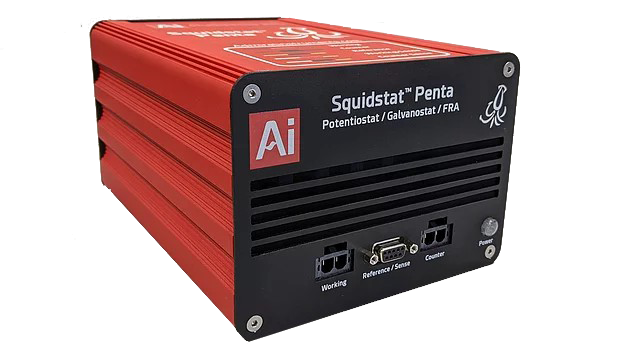

Squidstat Penta Potentiostat

Squidstat Penta

±5 A Potentiostat with EIS up to 2 MHz

Brand：Admiral

Description Specifications

Squidstat Penta Highlights:

l Becomes a multichannel system by connecting more Squidstats to the same computer

l Onboard memory (16 GB) backs up all data collected from experiments for failsafe recovery

l Voltage/current setpoints, OCP mode, and sampling rates are adjustable in real time

l Wide selection of prebuilt experiments are available, and the “Drag & Drop”experiment builder can quickly and easily make custom experiments – no coding skills necessary!

Each Squidstat Penta includes one 100 cm Working Electrode cable, one 100 cm Counter Electrode cable, one 100 cm sense cable with Reference, Working Sense, Counter Sense connections, one USB cable, and one power cable to connect to a power outlet. The Squidstat User Interface software and unlimited remote technical support are included with purchase.

Main Specification：

Operating Mode	POT/Gal/ZRA/FRA
ADC Resolution	16bits
Floating/Earth-ground	Both
Input impedance	>10T ohm
Compliance Voltage	±10 V
Scan range (control Voltage)	±10 V
Potential Accuracy	0.1% of setpoint, 1 mV min
Potential Resolution	0.003% of range, 15 μV min
Maximum Current	±5 A
Current Ranges	8 ranges, (1 μA to 5 A)
Current Accuracy	0.1% of range, 1 nA min
Current Resolution	0.003% of range, 30 pA min
AC Frequency Range for EIS	10 μHz to 2 MHz
AC Frequency Accuracy	0.005% or better
AC Frequency Resolution	0.0004%, 3 µHz min
